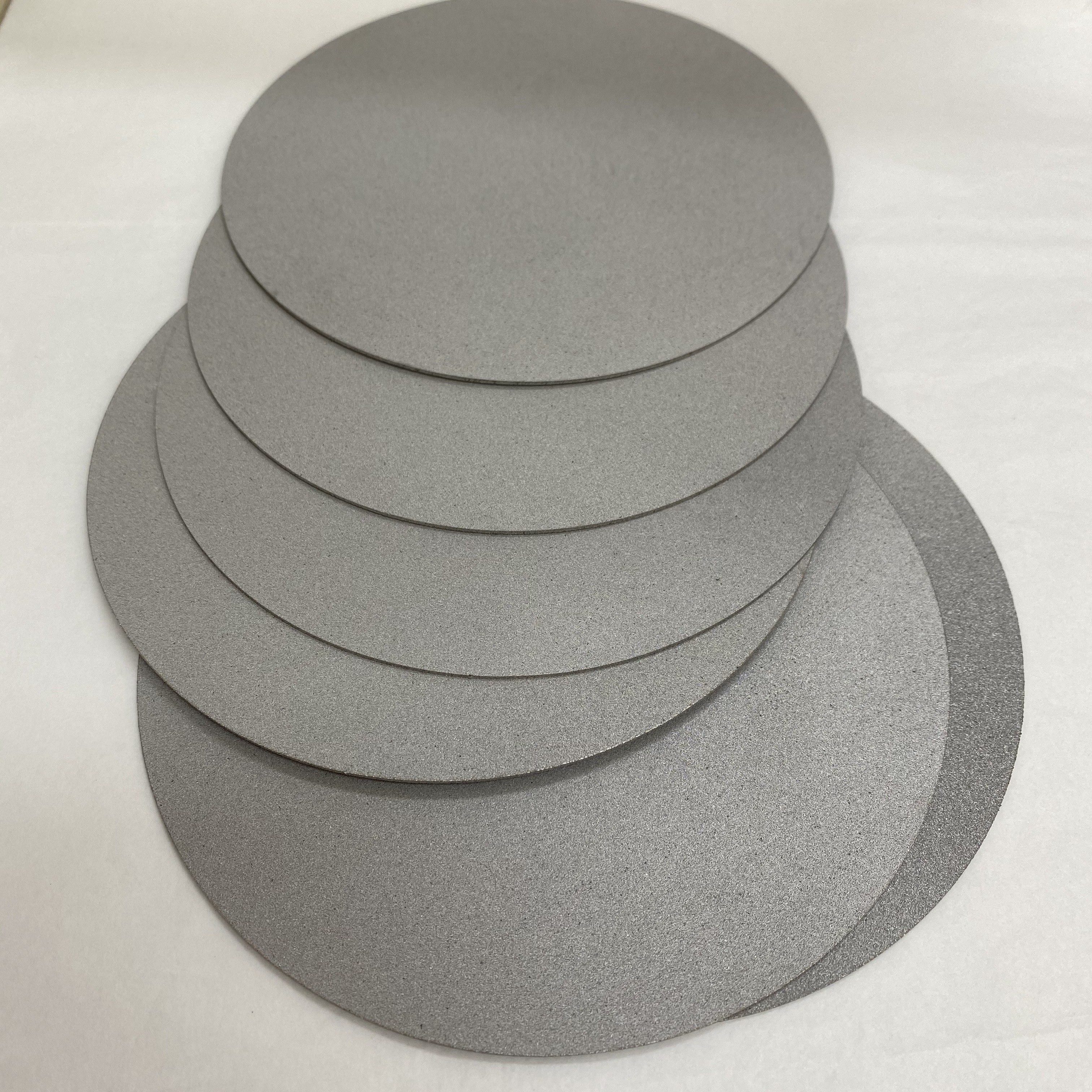

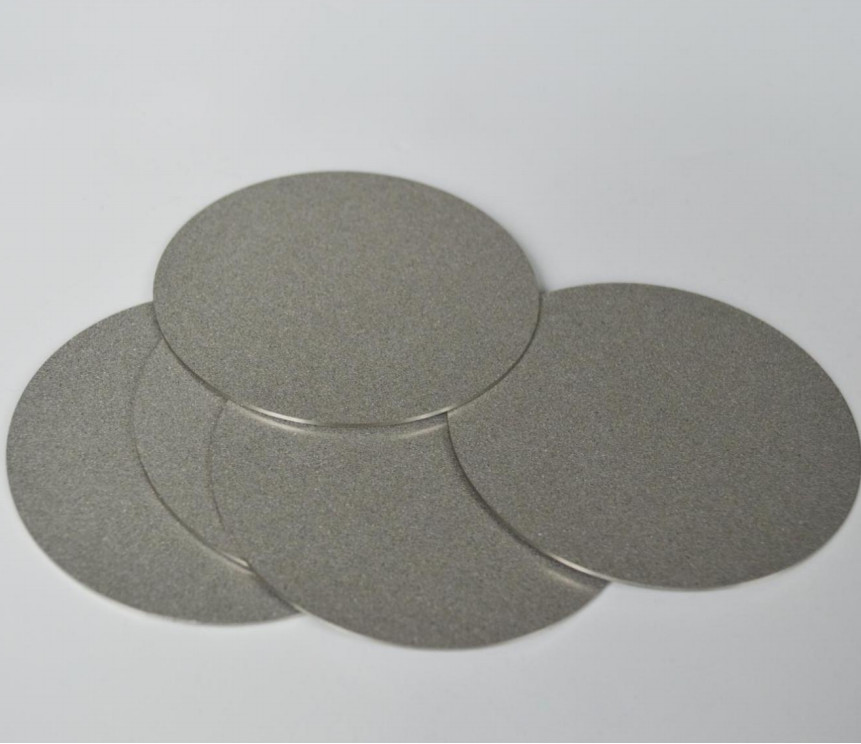

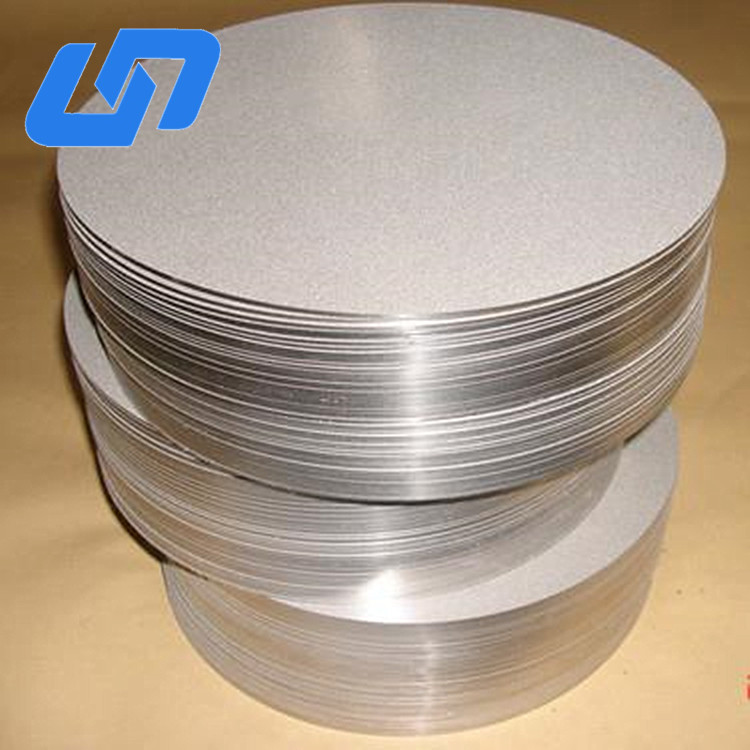

Sintered Plate Inconel600 Titanium SS 316L For Filtration And Separation
| Plaats van herkomst | CHINA |
|---|---|
| Merknaam | CSTY |
| Certificering | GB/T19001-2016/ISO9001:2015 |
| Modelnummer | SS 316L |
| Min. bestelaantal | 10kg |
| Prijs | $80.00 - $110.00/ Piece |
| Verpakking Details | film en houten koffer, karton Verpakking kan worden volgens de eisen van de klant. |
| Levertijd | 15 ~ 20 werkdagen |
| Betalingscondities | L/C, T/T, Western Union, MoneyGram, PayPal |
| Levering vermogen | 5000 kg/kg per maand |
Contacteer me voor vrije steekproeven en coupons.
whatsapp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xProductdetails
| Filtratie nauwkeurigheid | 0,1um | Schuurweerstand | Hoog |
|---|---|---|---|
| kenmerk | Gebruikt in zeer corrosieve omgevingen | Filtratiegebied | 0.3-1.0m2 |
| Specificatie | 0.5um, 2um, 5um, 10um, | Diameter | 50-1000 mm |
| Materiaal | Titanium, SS 316L, Inconel600, etc. | De steekproefdienst | Verstrek steekproef voor het testen |
| Type | metaal, SS -filterschijf | Standaard | ISO9000 |
| Werkdruk | 2-3Mpa | Verpakking | Standaard exportpakket |
| Leven in dienst | 2-5 jaar | Maximale druk | 2.0Mpa |
| Dimensie | Aangepast | ||
| Markeren | Gesinterde poreuze Inconel600-filterplaat,Filterplaten van titanium gesinterd,SS 316L gesinterd scheidingsplaat |
||
Productomschrijving
Introduction
Compared with traditional filtration materials such as paper, cotton, PP, PE, PES, and PTFE, metal powder sintered porous materials offer superior performance. They provide excellent permeability, precise pore size control, stable shape, high filtration accuracy, wear resistance, good mechanical strength, and excellent heat conduction and dissipation.
Moreover, sintered metal materials can withstand high temperatures, maintain their shape under stress, and be cleaned and reused multiple times, making them a durable and cost-effective filtration solution.
Specifications
| Product Name | Sintered Plate |
|---|---|
| Material | Pure Titanium / SS316L / Bronze / Inconel 600 |
| Size | OD 20–80 mm × WT 2.5–3.0 mm × L 10–1200 mm |
| Filter Accuracy | 0.5–80 µm |
| Connection | Customized according to customer requirements |
| Applications | Sparging, Separation and Filtration, Carbonation, Liquid Filtration, etc. |
Technical Parameters
| Filter Accuracy (µm) | Porosity (%) | Permeability (m³/m²·h·kPa) | Compression Strength (MPa) | Temperature Tolerance (°C) | Max Working Pressure (MPa) |
|---|---|---|---|---|---|
| 0.5–50 | 20–50 | 3–800 | 2–3 | 250 | 0.6 |
Applications
The sintered plate is widely used in industries including electronics, water treatment, food and beverage, biotechnology, chemicals, petrochemicals, metallurgy, and gas purification. It represents a new generation of filtration materials with broad development potential.
Typical applications include:
-
Sparging
-
Separation and Filtration
-
Carbonation
-
Liquid Filtration
-
Catalyst Recovery
-
Steam Filtration
-
Slurry Oil Filtration
-
Flame Arrestors
-
Sound Silencing
-
Fluid Distribution and Control
-
Semiconductor Manufacturing
-
Fuel Cell Stacks
-
Coating Electrodes
-
Damping and Shock Absorption
-
Heat Exchange
-
Bio-Implants
Properties
-
Uniform pore size and stable pore structure with high separation efficiency
-
High porosity, low filtration resistance, and excellent permeability
-
Outstanding chemical stability and resistance to acids, alkalis, and oxidation
-
Morphological stability—no particle shedding; compliant with food hygiene and pharmaceutical GMP standards
-
Strong mechanical properties, low differential pressure, and large flow capacity
-
Excellent anti-microbial characteristics, non-reactive with microorganisms
-
Easy online regeneration, backwashing, and long service life
-
Excellent biocompatibility for use in biological, food, pharmaceutical, and medical applications
-
Effective electromagnetic shielding performance
-
Strong damping and shock resistance
